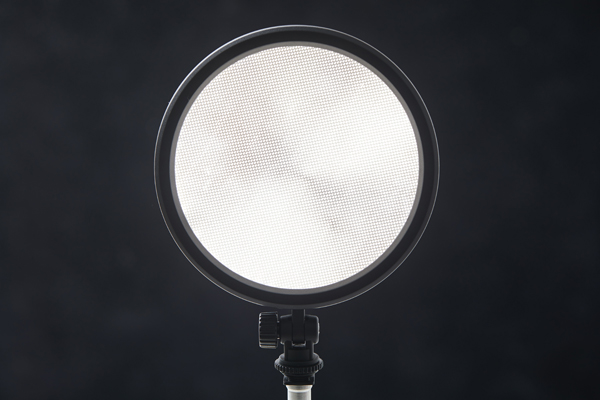

Ⅰproduct structure

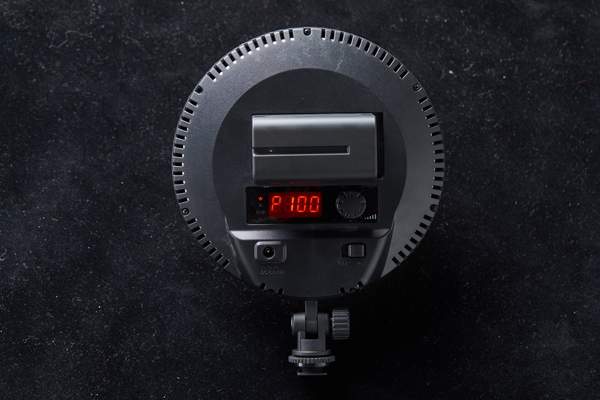

1, the power switch	5, hot soles and lock nut	9, color temperature indicator
2, DC9V - 12 v input	6, multi-function knob	10, the power indicator light
3, digital power display	7, battery slot	11, LED light-emitting surface
4, and Angle adjusting and locking nut	8, the power indicator light

Ⅱ Method of use
1, the power input (two power input mode, but cannot be used at the same time)
A, battery input: for battery: SONY NP - F series.Add: when installing the lithium battery will battery pack card slot in the direction shown by the arrow.Remove the lithium battery, please remove the lithium battery in the opposite direction
B, adapter dc input: use 6.8 V to 12 V dc adapter delta note: no use batteries and adapter dc input at the same time!

2, install camera lights
A, on the SLR camera, video camera hot boots use: push the camera light into the camera or video camera hot shoe, and twist lock nut.
B, fixed in lighting fixtures, use a tripod:
Camera light side is equipped with a 1/4 inch thread, can be directly tighten in the lamp or a tripod.

3, boot: press the power switch (1) to "ON" state, can be lit LED lights.

4, brightness adjustment: adjustment function knob (6), the power indicator light (8), from the PO - P1O - P100 adjust the brightness of the color temperature.

5, color temperature adjustment: press the multifunction button (6) to adjust knob, the power indicator light (8) light, color temperature from 3200 k to 5600 k.

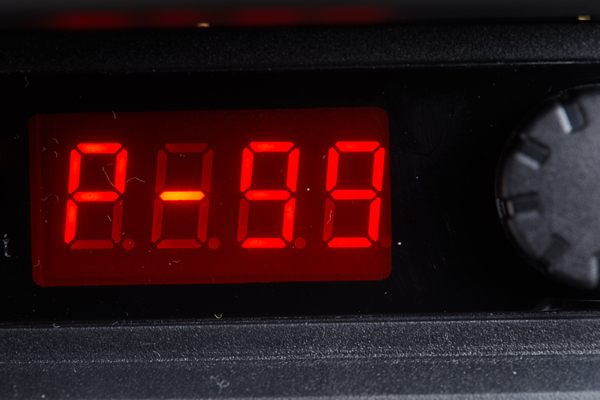

6, lateral capacity test: press the multifunction button (6) again, power indicator (10) on, teach code display will display power E00 - E10.Deficiency of E10 said power is enough, EI said.E0 or LED lights automatically shut down, said the battery needs charging.

Ⅲ Product specification

The light source	120 LED lamp bead	Color rendering	≥93%
The most powerful	13	Color temperature	3200-5600K
volume	200*170*30mm	The weight of the	240g

Ⅳ Failure analysis and ruled out: in the process of use, you may encounter the following problems

The fault	why	Processing method
Open the power switch	Lack of battery	Using the new battery or charge after use
	Circuit board	Return to factory maintenance
Lack of brightness	Lack of battery	Using the new battery or charge after use
Inaccurate deep test battery when the phone is switched on, the high brightness, show low battery power after lower brightness was full again	Battery side test indicated, it is under the current brightness can use the length of time, high brightness, need more power, the use of shorter time, so the battery shows less	Belong to the normal phenomenon
