Ⅰproduct structure
1, the power switch |
5, hot soles and lock nut |
9, color temperature indicator |
2, DC9V - 12 v input |
6, multi-function knob |
10, the power indicator light |

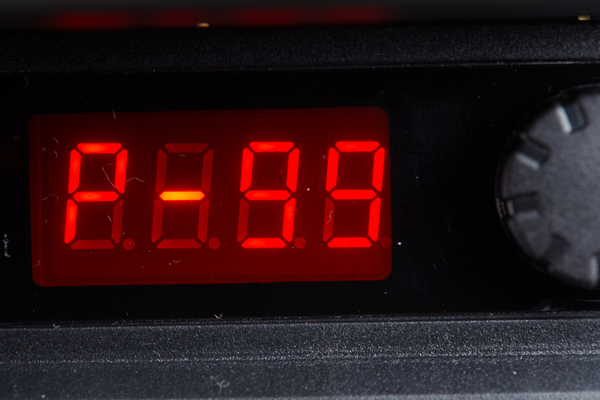

3, digital power display |
7, battery slot |
11, LED light-emitting surface |
4, and Angle adjusting and locking nut |
8, the power indicator light |
|
b, adapter dc input: use 6.8 V to 12 V dc adapter delta note: no use batteries and adapter dc input at the same time!
Camera light side is equipped with a 1/4 inch thread, can be directly tighten in the lamp or a tripod.
3, boot: press the power switch (1) to "ON" state, can be lit LED lights.
4, brightness adjustment: adjustment function knob (6), the power indicator light (8), from the PO - P1O - P100 adjust the brightness of the color temperature.
5, color temperature adjustment: press the multifunction button (6) to adjust knob, the power indicator light (8) light, color temperature from 3200 k to 5600 k.
6, lateral capacity test: press the multifunction button (6) again, power indicator (10) on, teach code display will display power E00 - E10.Deficiency of E10 said power is enough, EI said.E0 or LED lights automatically shut down, said the battery needs charging.
Ⅲ Product specification
The light source |
112 LED lamp bead |
Color rendering |
≥93% |
The most powerful |
12 |
Color temperature |
3200-5600K |
volume |
175*170*30mm |
The weight of the |
245g |
The fault |
why |
Processing method |
Open the power switch |
Lack of battery |
Using the new battery or charge after use |
Circuit board |
Return to factory maintenance |
|
Lack of brightness |
Lack of battery |
Using the new battery or charge after use |
Inaccurate deep test battery when the phone is switched on, the high brightness, show low battery power after lower brightness was full again |
Battery side test indicated, it is under the current brightness can use the length of time, high brightness, need more power, the use of shorter time, so the battery shows less |
Belong to the normal phenomenon
|
